• Precizia ridicată și eficiența ridicată pot obține o suprafață de procesare de înaltă calitate a electrozilor de cupru.

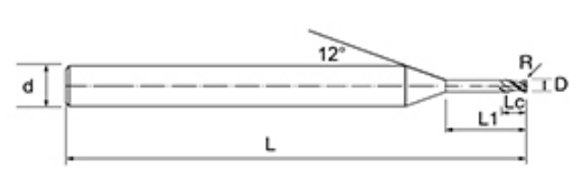

| Nu. | Diametrul D | Unghiul R R | Lungimea flautului Lc | Lungimea efectivă L1 | Lungimea totală L | Diametrul tijei d | Număr de lame F |
| NNX-2RSP-D0.2-L1 | 0.2 | 0.02 | 0.2 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.2 | 0.02 | 0.2 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.2 | 0.02 | 0.2 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.2 | 0.02 | 0.2 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1 | 0.2 | 0.05 | 0.2 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.2 | 0.05 | 0.2 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.2 | 0.05 | 0.2 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.2 | 0.05 | 0.2 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.3 | 0.02 | 0.3 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.3 | 0.02 | 0.3 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.3 | 0.02 | 0.3 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.3 | 0.02 | 0.3 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.3 | 0.02 | 0.3 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.3 | 0.05 | 0.3 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.3 | 0.05 | 0.3 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.3 | 0.05 | 0.3 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.3 | 0.05 | 0.3 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.3 | 0.05 | 0.3 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.4 | 0.02 | 0.4 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.4 | 0.02 | 0.4 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.4 | 0.02 | 0.4 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.4 | 0.02 | 0.4 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.4 | 0.02 | 0.4 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.4 | 0.02 | 0.4 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.4 | 0.02 | 0.4 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.4 | 0.05 | 0.4 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.4 | 0.05 | 0.4 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.4 | 0.05 | 0.4 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.4 | 0.05 | 0.4 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.4 | 0.05 | 0.4 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.4 | 0.05 | 0.4 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.4 | 0.05 | 0.4 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.4 | 0.1 | 0.4 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.4 | 0.1 | 0.4 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.4 | 0.1 | 0.4 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.4 | 0.1 | 0.4 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.4 | 0.1 | 0.4 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.4 | 0.1 | 0.4 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.4 | 0.1 | 0.4 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L2 | 0.5 | 0.02 | 0.5 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L3 | 0.5 | 0.02 | 0.5 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L4 | 0.5 | 0.02 | 0.5 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L5 | 0.5 | 0.02 | 0.5 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1 | 0.5 | 0.02 | 0.5 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.5 | 0.02 | 0.5 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.5 | 0.02 | 0.5 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.5 | 0.05 | 0.5 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1 | 0.5 | 0.05 | 0.5 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.5 | 0.05 | 0.5 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.5 | 0.05 | 0.5 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.5 | 0.05 | 0.5 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.5 | 0.05 | 0.5 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.5 | 0.05 | 0.5 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.5 | 0.1 | 0.5 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.5 | 0.1 | 0.5 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.5 | 0.1 | 0.5 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.5 | 0.1 | 0.5 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.5 | 0.1 | 0.5 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.5 | 0.1 | 0.5 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.5 | 0.1 | 0.5 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.6 | 0.02 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.6 | 0.02 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.6 | 0.02 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.6 | 0.02 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.6 | 0.02 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.6 | 0.02 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.6 | 0.02 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.6 | 0.05 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.6 | 0.05 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.6 | 0.05 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.6 | 0.05 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.6 | 0.05 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.6 | 0.05 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.6 | 0.05 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.6 | 0.1 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.6 | 0.1 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.6 | 0.1 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.6 | 0.1 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.6 | 0.1 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.6 | 0.1 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.6 | 0.1 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.6 | 0.2 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L2 | 0.6 | 0.2 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L3 | 0.6 | 0.2 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L4 | 0.6 | 0.2 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L5 | 0.6 | 0.2 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.6-L8 | 0.6 | 0.2 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.6-L10 | 0.6 | 0.2 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.02 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.02 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.02 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.02 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.02 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.02 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.02 | 0.8 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.05 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.05 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.05 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.05 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.05 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.05 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.05 | 0.8 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.1 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.1 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.1 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.1 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.1 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.1 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.1 | 0.8 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.2 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.2 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.2 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.2 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.2 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.2 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.2 | 0.8 | 10 | 50 | 4 | 2 |
| Seria de scule | Diametrul | Raza | Raza de colț | Lungimea flautului | Lungimea efectivă | Lungime totală | Diametrul tijei | |||
| D | R | CR | Lc | L1 | L | d | ||||
| Freze cu capat din carbură NNX pentru electrozi de cupru | D0.1~D0.9 | 0 -0,005 | R0,05~R2 | /-0,005 | CR0.05~CR0.5 | /-0,005 | 0 0.3 | 0 0.3 | 0.5 -0,5 | h5 |
| D1~D3.5 | 0 -0,005 | |||||||||
| D4~D10 | -0,003 -0,015 | R3~R5 | /-0,005 | CR1.0~CR3.0 | /-0,008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0,003 -0,018 | R6~R10 | /-0,008 | |||||||

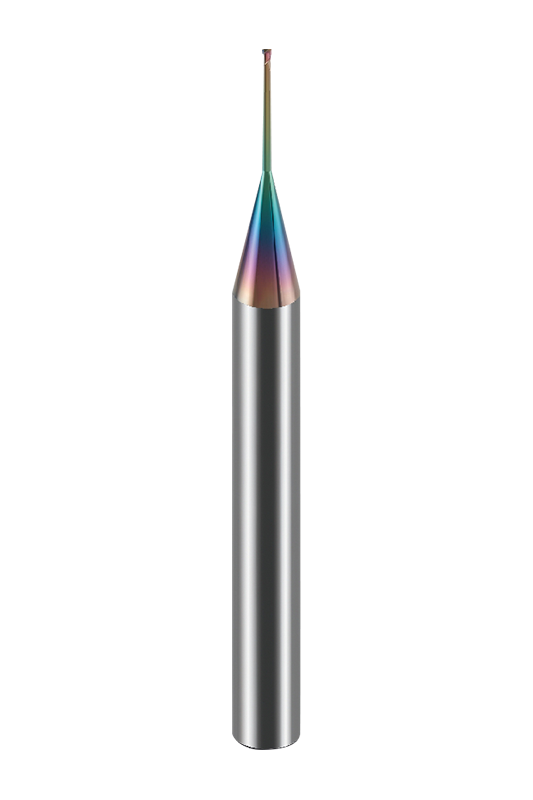

Produsele din seria NNX-2RSP oferă o gamă largă de dimensiuni, acoperind diametrele sculei de la 0,2 mm la 0,8 mm și realizează o varietate de combinații în ceea ce privește lungimea lamei, diametrul lamei și raza filetului. Fie că este vorba de cerințe de prelucrare de ultra-precizie sau de cerințe specifice de tăiere în adâncime, această serie poate oferi o potrivire flexibilă pentru a îndeplini opțiuni de înaltă precizie în diferite scenarii de prelucrare.
Designul unic cu canelura adâncă cu vârf rotund este special conceput pentru prelucrarea fină a electrozilor de cupru, ceea ce optimizează distribuția sarcinii de tăiere și permite instrumentului să mențină stabilitatea într-un spațiu mic. Unghiul de helix de 30° asigură îndepărtarea lină a așchiilor și reduce căldura și uzura sculei cauzate de acumularea de așchii în timpul prelucrării. În combinație cu caracteristicile micro-diametrului, poate obține performanțe excelente într-un mediu de prelucrare de înaltă precizie.
Întreaga serie utilizează substraturi cu particule ultrafine (0,2 μm) cu cea mai recentă tehnologie de acoperire DLC, oferind sculei un coeficient de frecare ultra-scăzut și o rezistență excelentă la uzură, îmbunătățind considerabil durata de viață a prelucrarii. Cu procesul de șlefuire de precizie, claritatea muchiei de tăiere ajunge la extrem. Designul general se concentrează pe performanța de prelucrare în oglindă a electrodului de cupru pentru a obține o microfinisare mai eficientă și mai stabilă.
